Description

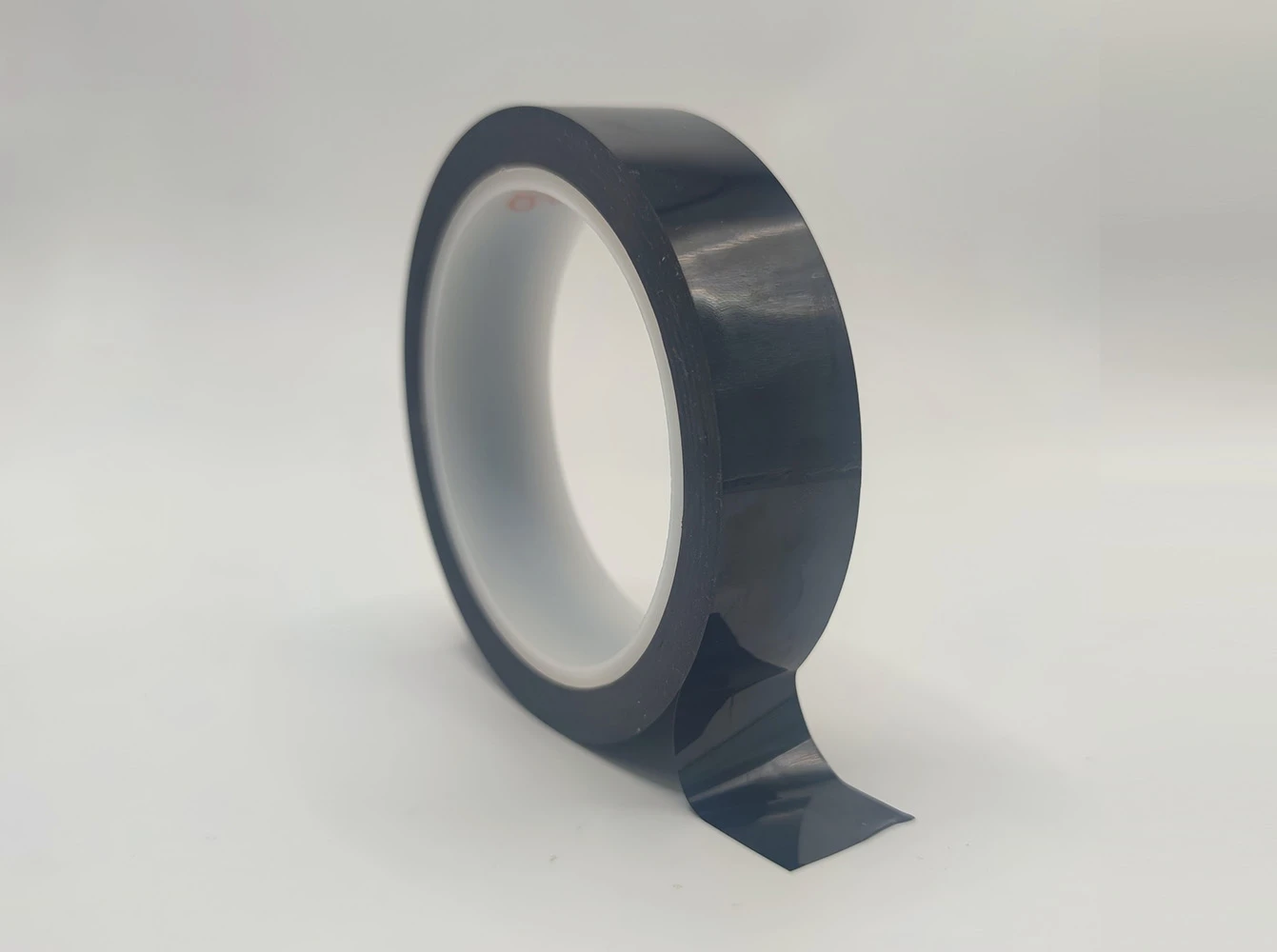

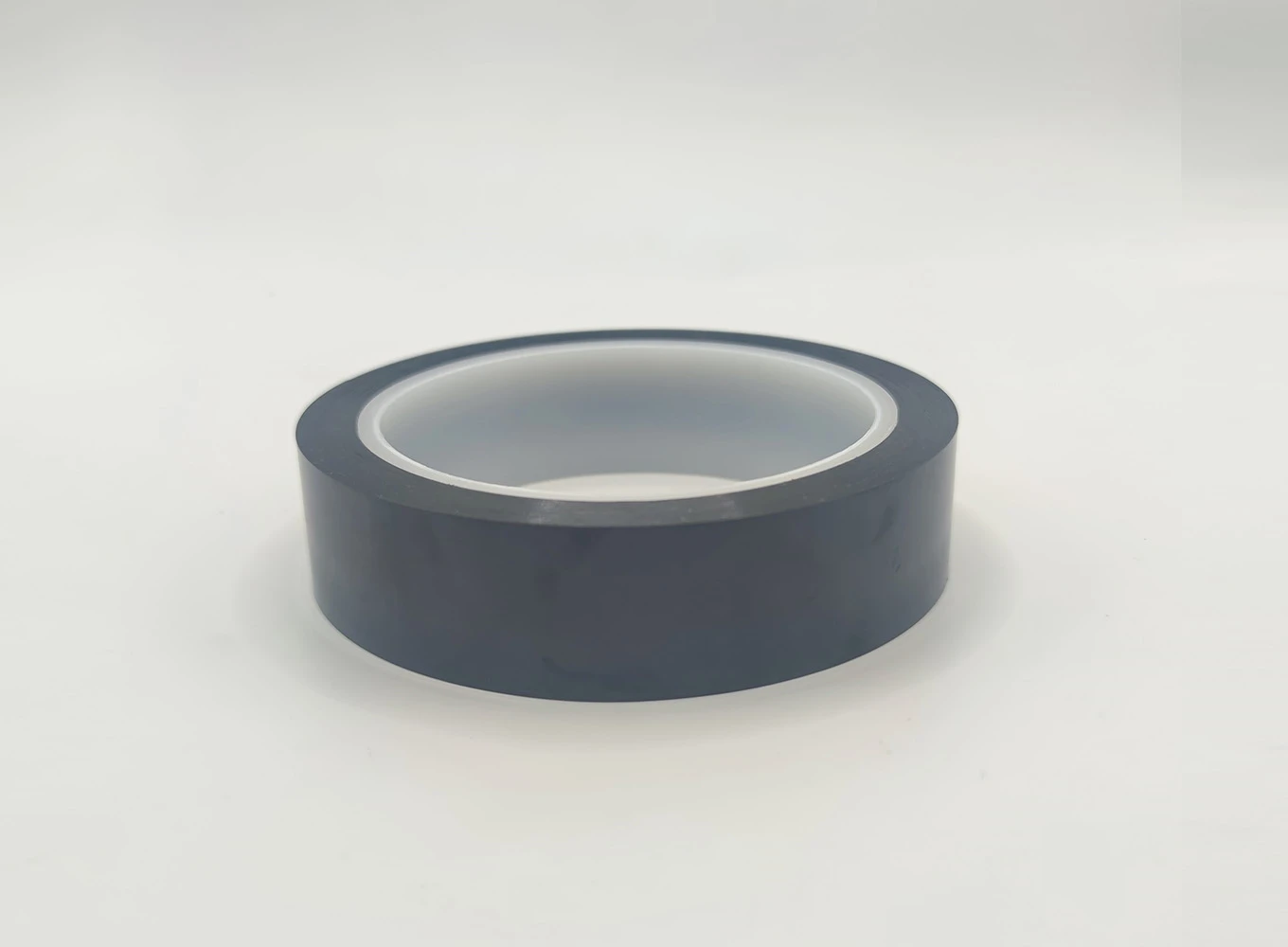

Black Kapton Tape (Gloss) is a glossy black polyimide tape designed for high-temperature electronics, industrial masking, and assemblies where surface appearance and wipe-cleanability matter. It features a 0.025 mm (25 μm) polyimide film coated with a high-temperature silicone pressure-sensitive adhesive, with typical total thickness options of ~0.05–0.06 mm depending on SKU. The smooth glossy surface provides a refined finish on visible seams and housings and is easier to wipe clean during assembly and inspection. Release liner options (e.g., release-coated PET liner such as fluorinated/silicone-release PET, or fluoropolymer liner) and die-cut formats are available for precision parts and production lines.
Key Benefits & Why Choose the Gloss Variant
- Premium aesthetic finish: The glossy surface provides higher reflectivity and a smooth appearance suitable for consumer-facing components, decorative seams, and visible assemblies where look-and-feel matters. This contrasts with matte versions that prioritize glare reduction.
- Easy surface cleaning: Gloss backing is typically smoother and easier to wipe free of dust, flux residues and fingerprints during assembly and final inspection.
- Gloss vs matte selection (assembly-driven): The smoother glossy surface is easier to wipe clean and can help reduce dust/particle retention compared with textured surfaces. For workflows relying on low-glare imaging or visual inspection under strong lighting, matte may still be preferred.
- Polyimide-based performance: Retains the intrinsic polyimide advantages — excellent thermal stability, dimensional stability, and strong dielectric properties — making it suitable for demanding electronics. For aerospace or vacuum-related requirements, material verification and application qualification are recommended.
- Thermal process compatible: Formulated to withstand common assembly processes including reflow, wave solder and thermal curing while maintaining adhesion and allowing clean removal with minimal residue (adhesive grade dependent).
Features
- High temperature resistance: Polyimide film provides excellent thermal stability and dimensional control. Actual service temperature is typically limited by the silicone adhesive system; many SKUs are rated in the ~200–260 °C continuous class, with short-term peaks above 260 °C potentially possible depending on adhesive grade and dwell time. Always refer to the specific product datasheet and validate under your process profile.
- Excellent electrical insulation: Polyimide film offers high dielectric strength and low dielectric constant — widely used for PCB masking, insulation of coils and transformers and in high-voltage component protection. Some catalog variants list breakdown voltages in the kV range for thin films.
- Silicone pressure-sensitive adhesive: Provides reliable adhesion across thermal cycles and clean removal on smooth substrates; adhesive thickness and formulation tailored per SKU (typical silicone adhesive layer per supplier datasheets ~0.015–0.035 mm).
- Smooth glossy surface: Low micro-texture improves appearance, reduces particle trapping and simplifies post-process cleaning compared with textured/matte films.
- Mechanical durability: Polyimide backing gives good tensile and tear resistance for handling and automated conversion (slitting, die-cutting).
- Chemical & solvent resistance: Resists common fluxes, oils and many solvents used in electronics manufacturing; for aggressive chemistries test under real conditions.
Datasheet
| Item NO. | Film Thickness（MM） | Total Thickness (MM) |
Adhesion to steel（N/25mm） | Tensile Strength（kg/25mm） | Heat Resistance（℃） | Elongation at Break（%） |
| J630G-50 | 0.025 | 0.05 | 4 | 10 | 260 | 45 |
| J630G-55 | 0.025 | 0.055 | 5 | 10 | 260 | 45 |
| J630G-60 | 0.025 | 0.06 | 5.5 | 10 | 260 | 45 |
Test Methods & Conditions (Reference)
Typical values are based on standard test methods and may vary with adhesive coat, substrate, and process conditions.
-
Peel adhesion to steel: ASTM D3330 (or FINAT FTM 1), 180° peel, 25 mm width
-
Tensile strength / Elongation: ASTM D3759 (tape) or equivalent industry method
-
Heat resistance: evaluated by internal method (temperature and dwell time available upon request)
-
Electrical tests (optional): dielectric breakdown per ASTM D149 available upon request
Applications
- Consumer electronics assemblies & visible seams — When the taped area will be visible on the finished product (e.g., seam covers, battery housings, camera modules), the gloss finish gives a refined, consistent appearance.
- Final-inspection panels and housings — Easier to clean and present to customers or inspectors; fewer micro-scratches than textured films when wiped.
- Decorative/branding seams and overlays — Where visual continuity and surface sheen are important.
- High-temperature masking where surface finish matters — Masking for processes (powder coating, IR curing) when the finish of the masked area will be seen after processing.
- Electronics manufacturing (selective) — PCB wave/reflow masking, component protection and FPC handling when glossy surface properties are acceptable for the inspection and optical processing flow. (Note: if your inspection relies on low-glare imaging, matte may still be preferred.)
- Aerospace & precision instruments — Where the combined need for Kapton-class performance and a controlled surface finish exists.
Formats & Customization
We supply glossy Black Kapton Tape in standard and custom formats to match OEM processes: precision slit rolls, sheets, and high-accuracy die-cut parts. Release liners (PET or fluoropolymer) and core sizes can be tailored for automated assembly or hand-use. Typical lead times and MOQ depend on format — contact sales for tooling and sample options.Samples and die-cut tooling are available upon request.
Compliance & Traceability
RoHS / REACH considerations and halogen-free options are available depending on adhesive and construction. Full lot traceability and test reports (temperature cycling, adhesion, dielectric testing) can be provided on request for critical projects.
FAQS
Q1: How does gloss affect performance compared with matte?
A: The underlying polyimide film, thermal resistance and electrical properties remain essentially the same for gloss vs matte constructions. The practical differences are surface reflectivity and texture: gloss is smoother and more reflective and easier to wipe clean, while matte reduces specular reflections and glare — choose gloss for appearance/cleanability and matte where reduced reflection is needed.
Q2: Can gloss Black Kapton Tape be used in reflow/wave solder processes?
A: Yes — when specified with a high-temperature silicone adhesive and appropriate thickness this tape is suitable for reflow and wave solder operations. Verify the adhesive peak temperature on the product datasheet (many silicone-PSA tapes are rated for continuous use in the ~200–260 °C range with short-term higher peaks).
Q3: Will the glossy surface leave residue after high-temperature exposure?
A: Properly formulated silicone PSA on polyimide film is designed for clean removal with minimal residue on smooth substrates; however residue behavior depends on adhesive grade, substrate and thermal profiles — we recommend application trials for critical surfaces.
Q4: Is the glossy black film still classed as Kapton?
A: Kapton is a DuPont trademark for specific polyimide films. Many suppliers manufacture black polyimide tapes using Kapton-class polyimide or equivalent films; check the product datasheet if you require official DuPont Kapton-branded film. DuPont Kapton film datasheets document the temperature performance of polyimide base films.Lot traceability and test reports are available upon request for critical projects.
