Product Description

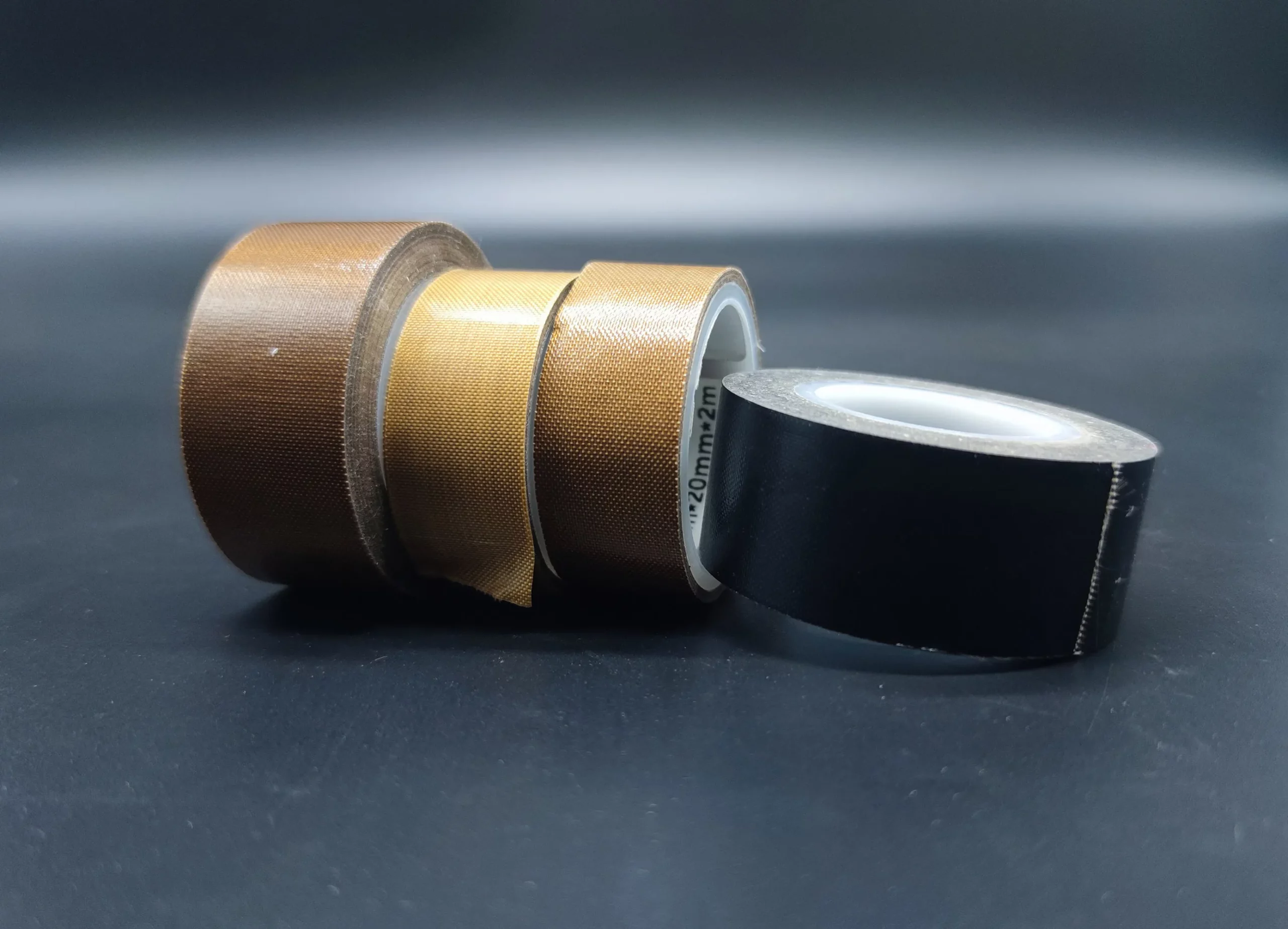

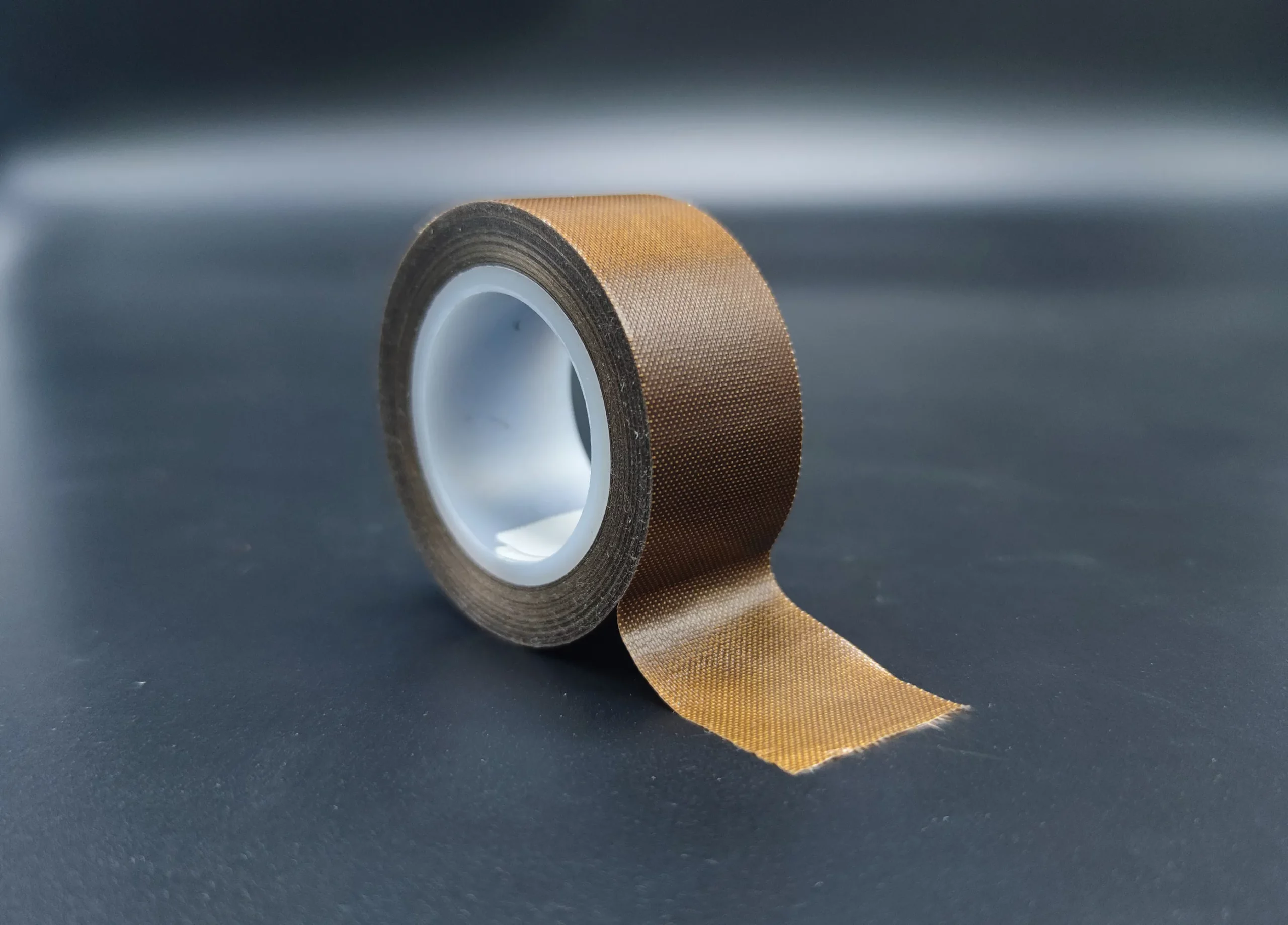

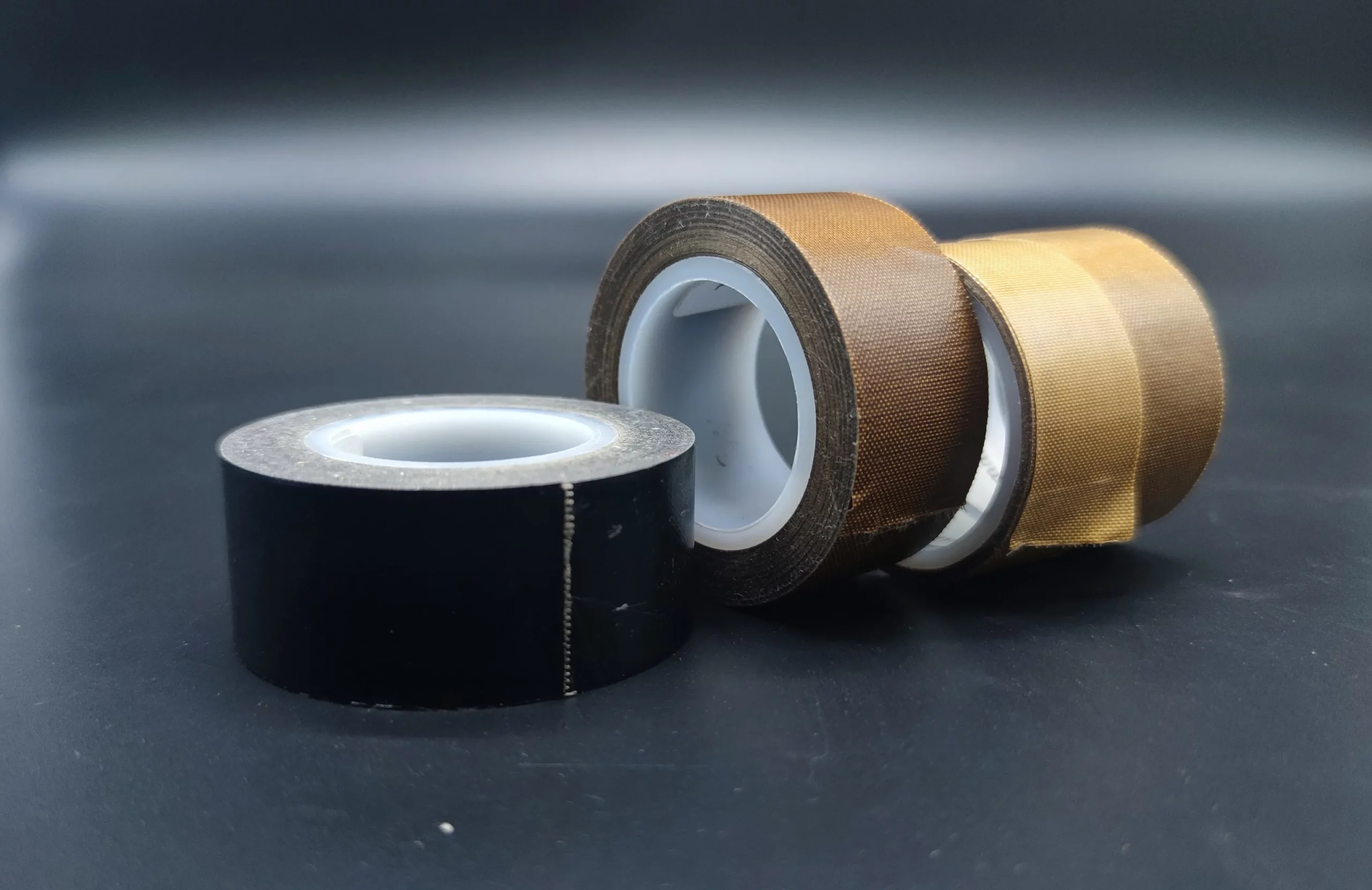

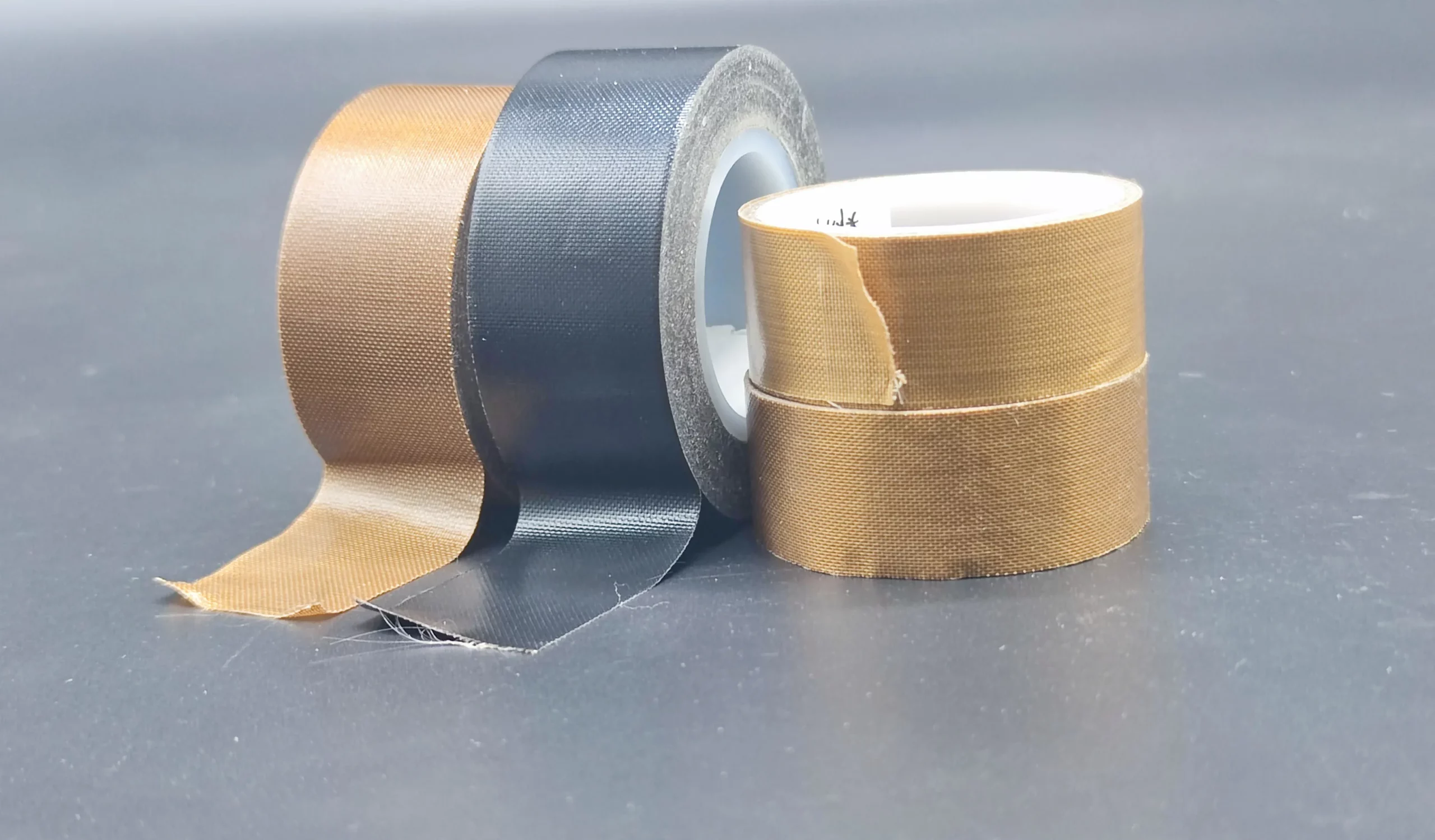

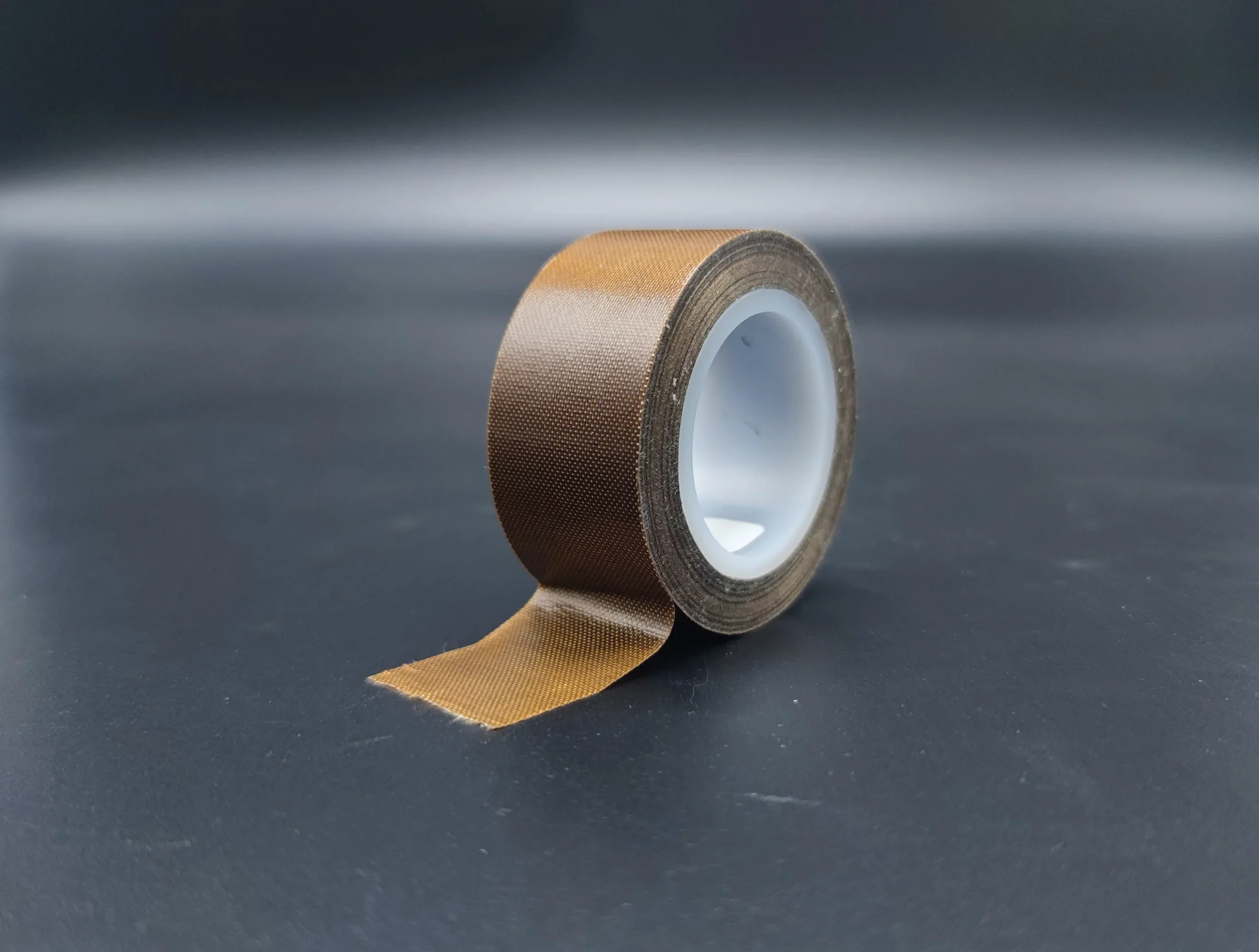

Our PTFE Glass Cloth Tape (also known as PTFE Coated Glass Fabric Adhesive Tape) is engineered for high-temperature, high-duty industrial applications where release performance, wear resistance, and dimensional stability are critical. It is manufactured from woven fiberglass cloth that is coated and sintered with PTFE, delivering an ultra-low surface energy, non-stick finish along with excellent chemical resistance and mechanical strength. Compared with PTFE film tapes, the glass-cloth reinforcement provides significantly higher tensile strength and better dimensional stability, helping minimize stretching or deformation under tension in continuous production.
One side is coated with a high-temperature silicone pressure-sensitive adhesive for secure bonding to equipment surfaces. The adhesive is designed for reliable hold and typically allows clean removal under recommended conditions; actual removability and any potential residue may vary depending on the substrate, operating temperature, pressure, and dwell time.
Standard thicknesses (total thickness including silicone adhesive): 0.13 mm, 0.18 mm, 0.20 mm, 0.25 mm, and 0.30 mm. Widths up to 1250 mm are available, and other dimensions (width, roll length, and liner options) can be customized upon request. With a PTFE/glass construction service temperature up to 260°C (500°F), this tape is widely used on heat sealing bars and jaws, packaging and food-processing equipment (non-stick release surfaces), and PVC window welding plates—especially in high-cycle operations requiring consistent release and durability.
Datasheet
| Item No. | RS710-A | RS710-B | RS710-C | RS710-D | RS710-E |
| Total Thickness (incl. silicone adhesive) | 0.13mm(5mil) | 0.18mm(7mil) | 0.20mm(8mil) | 0.25mm(10mil) | 0.30mm(12mil) |
| Base Material | PTFE fiberglass cloth | PTFE fiberglass cloth | PTFE fiberglass cloth | PTFE fiberglass cloth | PTFE fiberglass cloth |
| Adhesive | Silicone | Silicone | Silicone | Silicone | Silicone |
| Adhesion to Steel | 22 N/100mm | 28 N/100mm | 35 N/100mm | 48 N/100mm | 62 N/100mm |
| Tensile Strength | 900 N/100mm | 1700 N/100mm | 2300 N/100mm | 2750 N/100mm | 3650 N/100mm |
| Max Width | 1250mm | 1250mm | 1250mm | 1250mm | 1250mm |
| Temperature Resistance | -70~260°C | -70~260°C | -70~260°C | -70~260°C | -70~260°C |
Quality & Testing
-
Adhesion to steel and tensile strength are tested per internal QC procedures.
-
Each batch is inspected for coating uniformity, thickness, and slitting accuracy.
-
TDS / COA available upon request.
Service temperature (PTFE/glass): up to 260°C (500°F). Adhesive performance may vary with dwell time, load, and substrate—please refer to application conditions.
Features
Our PTFE Glass Cloth Tape boasts several key features that enhance its functionality in demanding environments:
- Exceptional Heat Resistance: Capable of withstanding continuous temperatures up to 260°C (500°F), ensuring reliability in high-temperature applications.
- Non-Stick Coating: The slick PTFE surface minimizes adhesion, making it ideal for easy release applications.
- Chemical Stability: Resistant to a wide array of chemicals, our tape is suitable for harsh environments.
- Durable Mechanical Strength: The woven glass fabric provides excellent tensile strength, reducing the risk of tears and punctures.
- Easy Application and Removal: The silicone adhesive allows for hassle-free application and removal without residue.
- Custom Thickness Options: Available in various thicknesses, our tape can be tailored to fit specific requirements.
Applications
Packaging and Food Processing
Our PTFE glass adhesive tape is extensively used in packaging machines for heat sealing applications, ensuring a reliable seal without sticking to materials.
Electronics Industry
In the electronics sector, this tape is used for insulation in transformers and motors, protecting sensitive components during manufacturing.
Heat Sealing Machines
Applied to heat sealing machines, it provides a non-stick barrier that enhances efficiency and prolongs equipment lifespan.
PVC Window Manufacturing
Applied on welding plates to prevent molten PVC from sticking. Designed for high-cycle welding operations, helping maintain cleaner welds and longer service life.
Mold Release Applications
In composite bonding, the tape serves as an effective mold release agent, allowing for easy demolding and reducing waste.
Insulation and Protection
It acts as an insulating liner, providing a protective barrier against heat and electrical interference in machinery.
Textile Industry
In textiles, our PTFE glass cloth tape is utilized for heat sealing and bonding, taking advantage of its high-temperature resistance.
As a trusted manufacturer of PTFE glass cloth tape, we are dedicated to providing tailored solutions that meet our clients’ diverse needs. Our products are crafted to the highest standards, ensuring exceptional performance across various applications.
If you are seeking a reliable supplier for PTFE glass cloth tape or require customized solutions, we have the expertise to support your operations. Reach out to us today to learn more about our extensive range of PTFE coated glass fabric tape options and how we can enhance your processes.

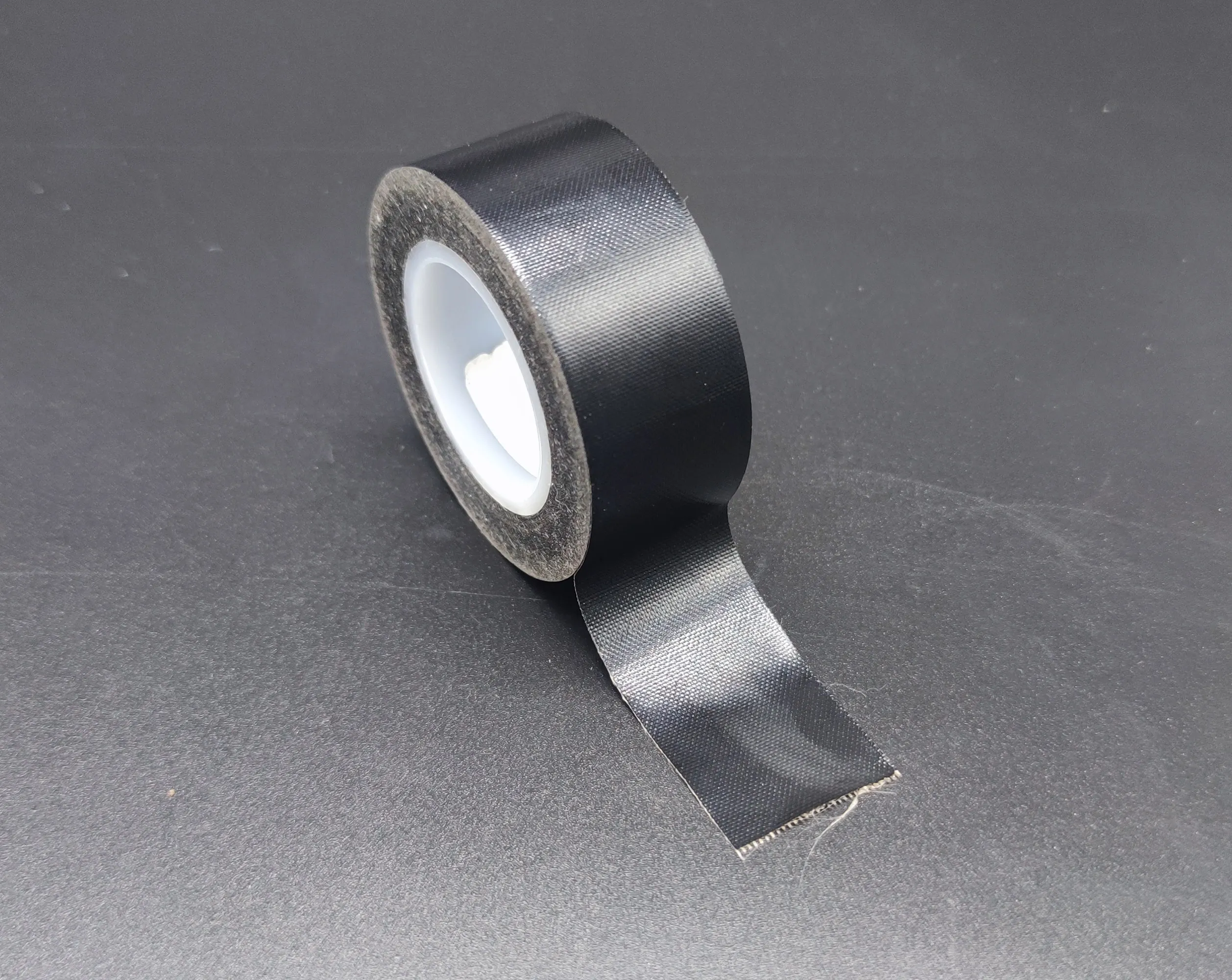

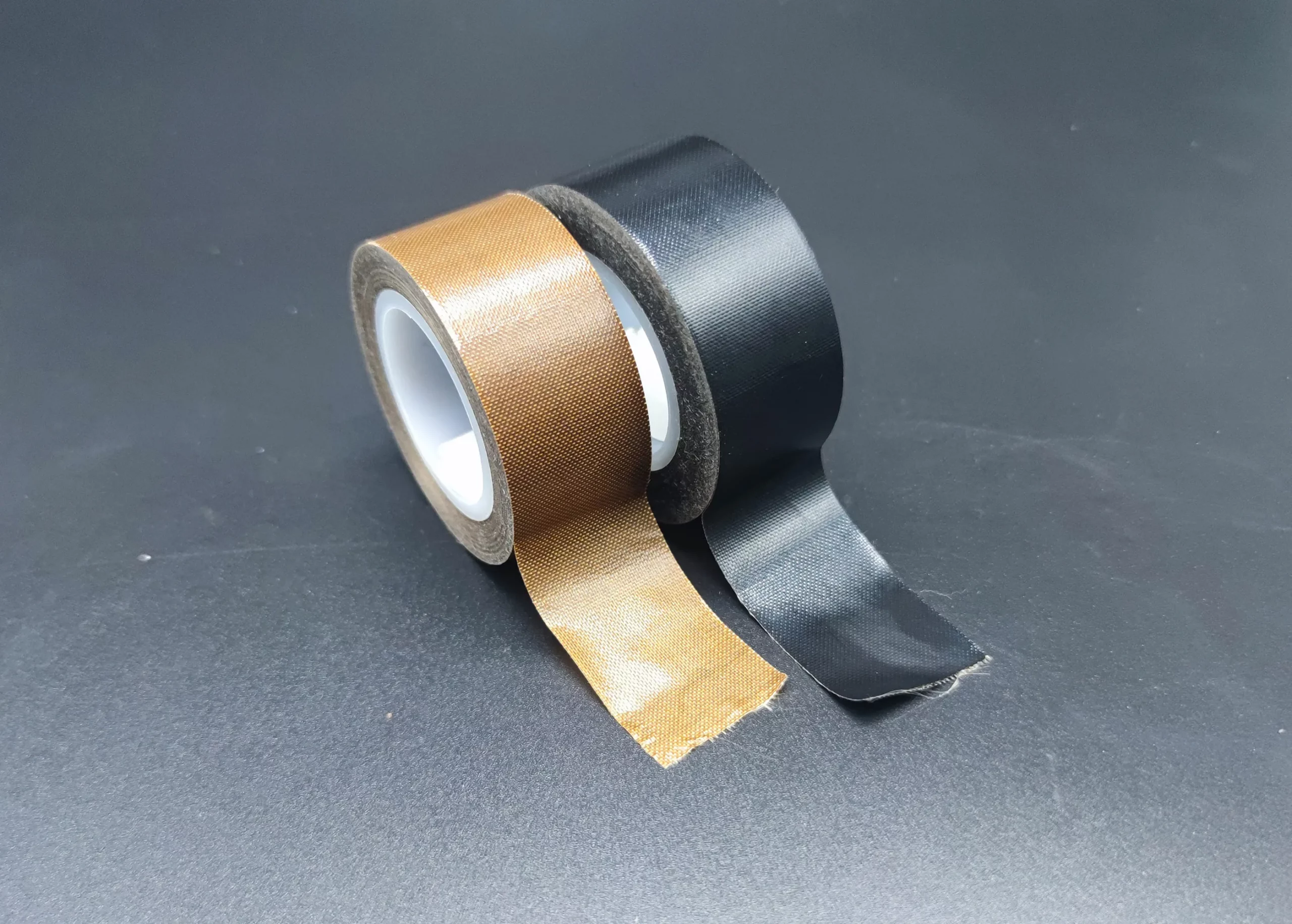

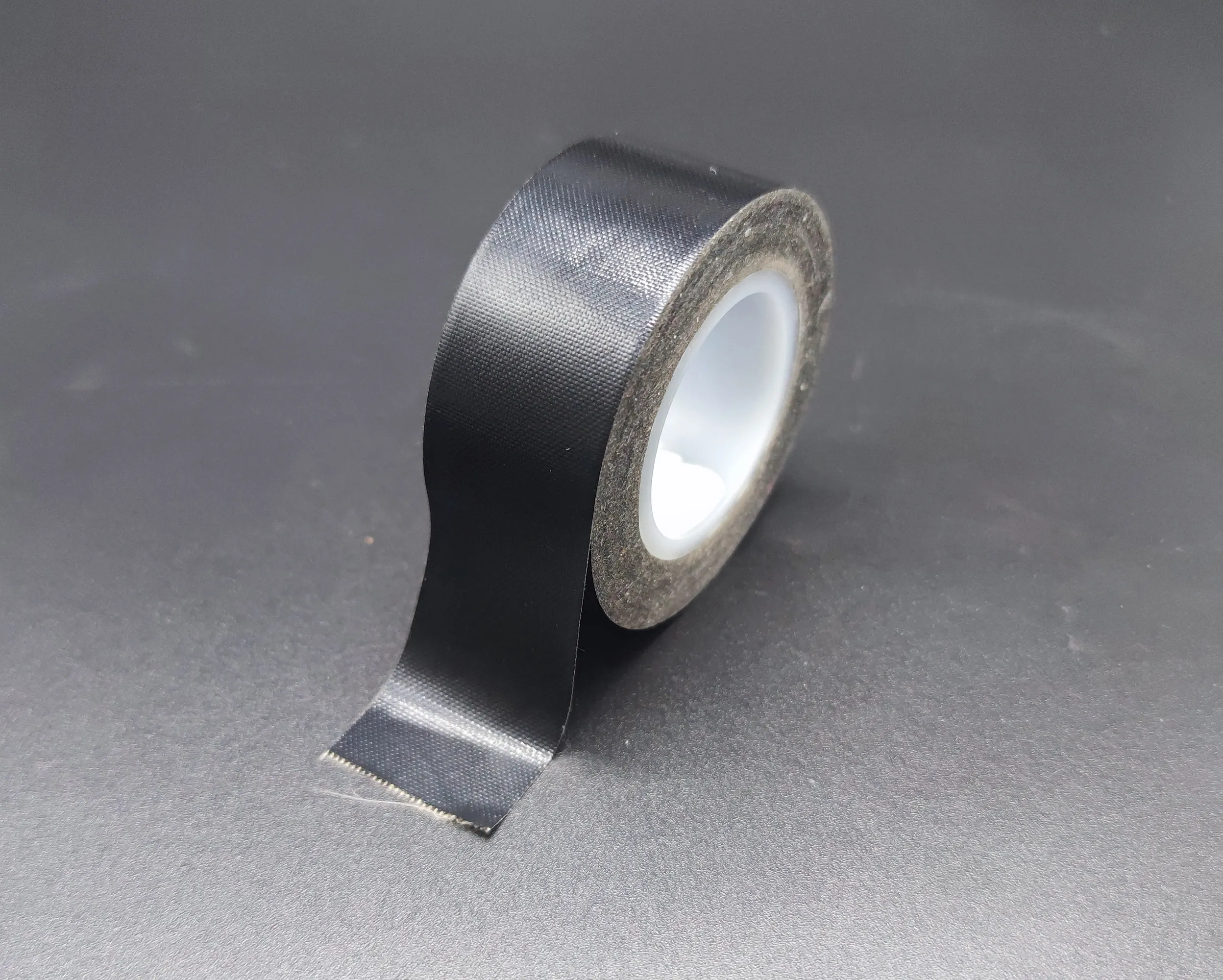

Also Available: Black Antistatic PTFE Glass Cloth Tape
For ESD-sensitive electronics processing, black antistatic versions are available upon request.
PTFE Film Tape vs. PTFE Glass Cloth Tape
| Feature | PTFE Film Tape | PTFE Glass Cloth Tape (RS710) |
|---|---|---|
| Flexibility | Higher | Moderate |
| Tensile Strength | Moderate | High |
| Dimensional Stability | Moderate | Excellent (low stretch) |
| Wear Resistance | Moderate | High |
| Typical Applications | Wire wrap, light-duty sealing | Heat sealing, PVC window welding, wear surfaces |
Need a more flexible option? Explore our PTFE Film Tape.
Q1. What is the difference between PTFE glass cloth tape and PTFE film tape?
A: PTFE glass cloth tape is fiberglass-reinforced, so it offers much higher tensile strength, better dimensional stability (low stretch), and higher wear resistance—ideal for heat sealing, packaging machinery, and PVC window welding. PTFE film tape is more flexible/conformable, better for wrapping uneven surfaces or light-duty release needs.
Q2. Is the thickness measured as total thickness including silicone adhesive?
A: Yes. The listed thicknesses (0.13 / 0.18 / 0.20 / 0.25 / 0.30 mm) are total thickness including the silicone adhesive. Common mil equivalents (rounded): 5 / 7 / 8 / 10 / 12 mil.
Q3. What thickness (5 mil / 7 mil / 10 mil / 12 mil) should I choose for heat sealing?
A:
-
5 mil (0.13mm): best fit on smoother bars, moderate wear
-
7–8 mil (0.18–0.20mm): general-purpose choice
-
10 mil (0.25mm): higher pressure/abrasion, often longer life
-
12 mil (0.30mm): maximum durability for heavy wear (less conformable)
Q4. What is the maximum service temperature? Is 260°C continuous?
A: The PTFE/glass construction is rated up to 260°C (500°F). “Continuous at 260°C” depends on dwell time, pressure/load, substrate, and adhesive performance, so it’s best validated under your actual process conditions.
Q5. Will the silicone adhesive leave residue on metal surfaces?
A: Silicone PSA is designed for strong bonding and often removes cleanly, but residue can vary with surface type/cleanliness, temperature, pressure, and dwell time. A small on-site test is recommended if residue sensitivity is critical.
Q6. When should I replace the tape on a heat sealer or welding plate?
A: Replace when you see surface wear/scratches, edge lifting, tears or glass-fiber exposure, or when film starts sticking despite normal settings. If wear is the main issue, moving up to 10 mil (0.25mm) often helps.
Q7. Do you offer black antistatic PTFE glass cloth tape for ESD applications?
A: Black antistatic versions are commonly used for ESD-sensitive electronics processing. Requirements vary by grade, so confirm your target ESD needs (e.g., resistivity range and operating temperature) to match the appropriate specification.
